Product Description
- 0 – 10 Vdc signal output to MagnaValve®
- Output limit control prevents motor overload
- Mounts on panel door for easy access
- Front and back LED indicators
- Provides manual operation (an open loop system) for the LP-24, VLP-24 and WM 3000-24 MagnaValve
- Operates from 24 Vdc
- CE compliant

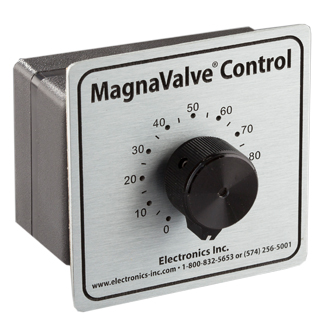

The Pot-24 Controller provides manual operation (an open loop system) to the MagnaValve® with a 0 – 100% control signal range. The controller can also be used as a safeguard by setting the output limit for 20% – 100%, thus limiting the signal to the MagnaValve, restricting the shot’s maximum flow rate and preventing excessive current to the wheel.
