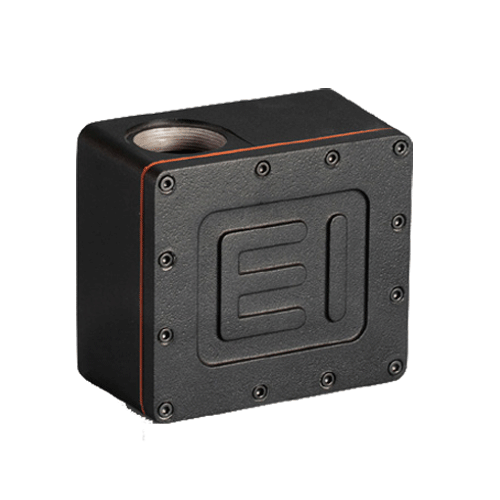

Product Description
- Bending Beam Flow Rate Measurement Technology
- ±5% full scale accuracy (standard)
- Operates from 24 Vdc
- Output signal is 0-10 Vdc
- CE compliant
Bending Beam Flow Rate Measurement Technology provides a simple and highly accurate method of sensing the flow of particulate media. Falling media impacts the end of a thin blade. Measuring the displacement provides a direct measure of media flow rate. The displacement sensor output signal is scaled 0-10 Vdc to represent the media flow rate. Simple connections via USB port and cable to a Windows-based laptop computer and its Terminal program will allow selection of single or multi-point (up to ten points) calibration.
(US Patent 8,388,407 B1)
