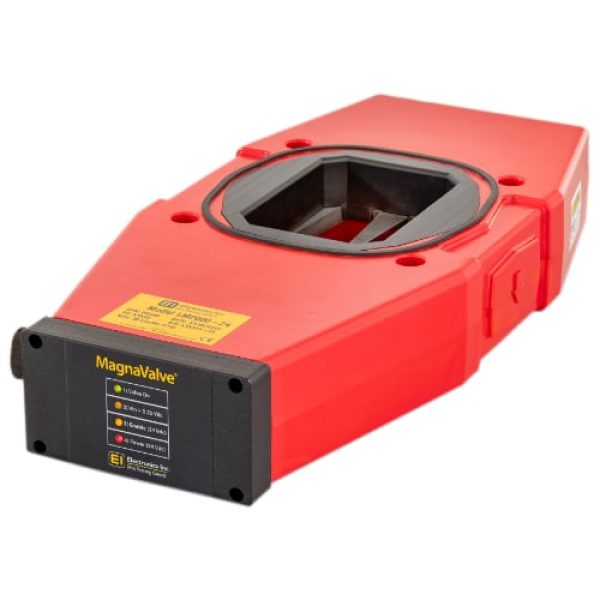

MagnaValves for Wheel Blast Machines

The MagnaValve® reduces labor, media and energy costs while adding control and reliability to blast cleaning and shot peening processes. The MagnaValve is the ideal replacement valve for mechanical abrasive control valves.

How a MagnaValve® Works

The MagnaValve has rare earth permanent magnets for normally closed operation and an electromagnet for controlling media flow rates. With power applied, the magnetic field is neutralized and media is allowed to flow through the valve. When no power is applied to the MagnaValve, the permanent magnets stop all flow. If the power is interrupted for any reason, the permanent magnets securely hold the media, thereby virtually eliminating media leakage. Additional benefits include:

Works with most steel media including cut wire media, cast steel shot and grit, and stainless steel cut wire media
No moving parts for low-maintenance operation
Securely holds the media – even in a power failure
Eliminates need for a secondary shut-off valve
Unique design prevents damage from flowing media
Completely sealed against debris
Optimizes the load on large horsepower motors and reduces energy consumption

Reduces media usage
Provides highly controllable shot flow rates to each wheel
Numerous control options (amperage or actual flow rate feedback)
Consistent wheel motor loadings ensure shot flow is the same day after day
Precision electronic flow adjustment when required
Easily retrofitted to older machines
Over 32 years of proven performance in the field

Why a MagnaValve® Is Better Than a Mechanical Abrasive Control Valve

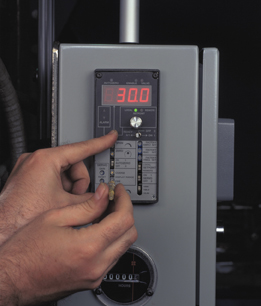

MagnaValve Controller - Electronics Inc — A MagnaValve controller provides closed-loop process control

Rebuilder Project - Electronics Inc — Rebuilders use the MagnaValve to bring machines up-to-date and improve productivity

Easy to retrofit to older machines -- can be done in-house — Easy to retrofit to older machines — can be done in-house

No moving parts for low-maintenance operation
Completely sealed against debris
Unique magnetic technology eliminates leaks and flooded wheels
Easy retrofit to Goff, Pangborn, Wheelabrator and other abrasive blast cleaning machines
Cost savings from the efficient use of media
Provides process improvement from a closed-loop system when paired with a MagnaValve Controller

Control Methods: Motor Current, Flow Rate, Manual

Motor Current Control
The AC Controller and AC-24 Controller provide automatic operation (a closed-loop system) for a MagnaValve. The feedback from the controller allows the MagnaValve to regulate steel shot in shot peening and blast cleaning applications where accurate and repeatable flow rates are desired. The controller may operate as a stand-alone control or work with a customer’s programmable controller via standard analog 0-10 Vdc interface. Alarm contacts will notify of a high or low motor current outside of an adjustable bandwidth.

Flow Rate Control
The FC Controller or FC-24 Controller provide a closed-loop system for a MagnaValve®. The MagnaValve® and controller provide accurate regulation of steel shot in shot peening and blast cleaning applications where accurate and repeatable flow rates are desired. The controller may operate as a stand-alone control or work with a customer’s programmable controller via standard analog 0-10 Vdc interface.

Manual Control
The MC Controller provides the power signal for the manual MagnaValve series (VLP-1000, LP-2000, and 100 MagnaValve). It provides a 0-100% range of output to the MagnaValve using pulse width modulation (PWM). The controller may operate alone or in conjunction with a remote 0 – 10 Vdc setpoint command.

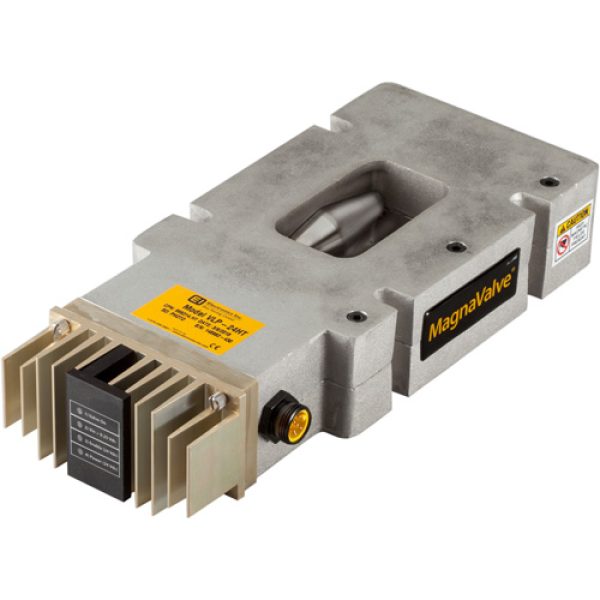

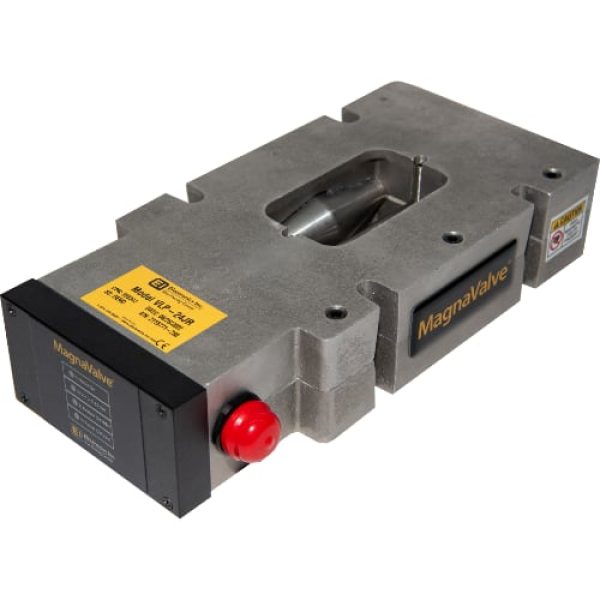

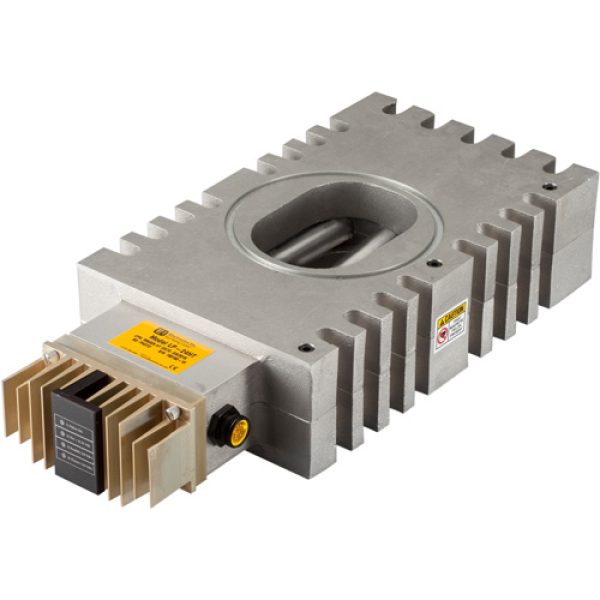

The Pot-24 Controller provides manual operation (an open-loop system) to the MagnaValve® with a 0 – 100% control signal range. The controller can also be used as a safeguard by setting the output limit for 20% – 100%, thus limiting the signal to the MagnaValve, restricting the shot’s maximum flow rate and preventing excessive current to the wheel. The POT-24 provides manual operation for the LP-24, VLP-24 and WM 3000-24 MagnaValve®.

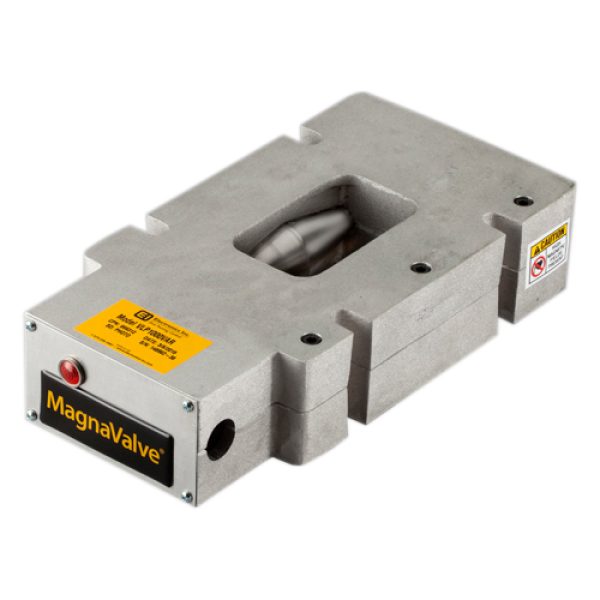

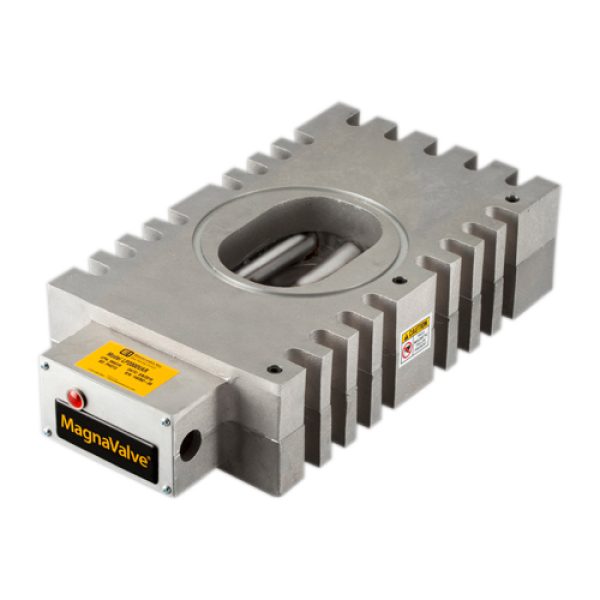

The Variac is a variable AC transformer that provides 0-120 Vac output voltage to the MagnaValve. With zero volts applied to the MagnaValve, the permanent magnets hold the shot. Application of voltage will cancel the permanent magnets’ holding force and allow the shot to flow. Higher voltages will provide higher shot flow rates. The Variac is included with the VLP1000VAR MagnaValve and the LP2000VAR MagnaValve and can also be purchased separately.

A 102 Power Pack provides “manual” open-loop control for the LP2000, and VLP1000 MagnaValves. The 102 Power Pak produces the control signal to the MagnaValve® for the convenient regulation of shot flow rates. The Power Pak has an 11-pin plug on the bottom. An external control pot may be mounted near the wheel motor ammeter for operator convenience or multiple external potentiometers can be selected for preprogrammed flow settings. A 0 – 5 Vdc or 0 -10 Vdc signal from a PLC can also be used for flow settings. Output signal is a fixed frequency variable duty cycle (0-100%) for shot flow regulation.

FAQs

Q. How do I find the right MagnaValve® for my blast cleaning application?
A. MagnaValves are categorized by desired flow rates, a wheel machine’s horsepower, and whether your control panel has 110 Vac or 24 Vdc electrical voltage available. We have data sheets with specifications and dimension drawings for each product and our customer service and engineering staff are ready to assist you.

Q. Can I install a MagnaValve® on my older machine?
A. Yes, the MagnaValve is ideal for retrofits. In fact, we have a complete line of low profile MagnaValves that were designed for retrofit applications. Many rebuilders of Pangborn, Goff and Wheelabrator equipment use MagnaValves in their machines. Our engineering staff will answer any questions you may have during the installation of your MagnaValve.

Q. What media can I use in a MagnaValve®?
A. The MagnaValve can flow the following ferrous media: cut wire media, cast steel shot and grit, and stainless steel cut wire media. The MagnaValve does not flow cast stainless steel shot because it is not magnetic.

Q. Why should I use a controller with a MagnaValve®?
A. A foolproof closed-loop operation is possible when a MagnaValve is paired with an Electronics Inc. (EI) controller. We have MagnaValves and controllers for automatic amperage closed-loop control and MagnaValves and controllers for automatic flow rate closed-loop control. These media control systems give accurate and repeatable results. (Read our article on how controlling amperage reduces damage to your machine and lowers energy and media costs.) We also have MagnaValves with manual operator controls.

Q. Will my machine operator like the MagnaValve®?
A. Machine operators love the MagnaValve because it’s a low-maintenance valve—it has no moving parts so there are no parts to wear or break and it’s completely sealed to prevent media dust from entering the valve. When used with a controller, adjustments are easily made at the control panel.

Q. My mechanical valve leaks, resulting in lost production time while the wheel housing is cleaned out. How does the MagnaValve® prevent shot leakage?
A. The MagnaValve has rare earth permanent magnets for normally closed operation and an electromagnet for controlling shot flow rates. With power applied, the magnetic field is neutralized and shot is allowed to flow through the valve. When no power is applied to the MagnaValve, the permanent magnets stop all flow. If the power is interrupted for any reason, the permanent magnets securely hold the shot, thereby virtually eliminating shot leakage.

Q. Can I use different sizes or types of media in a MagnaValve®?

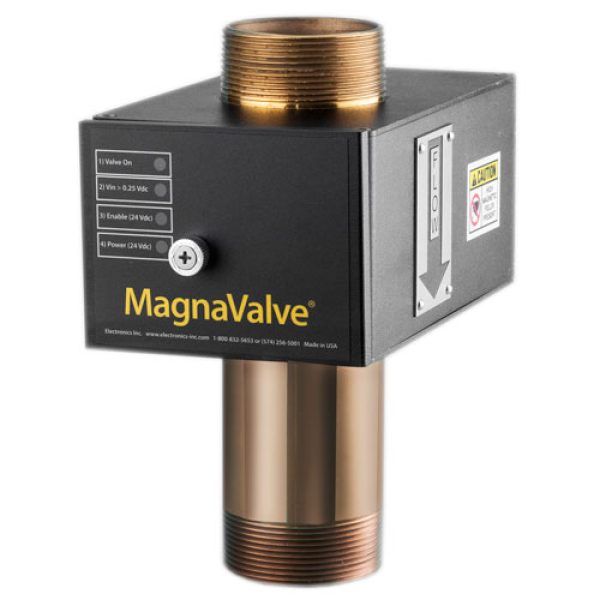

A. Yes, the LP or VLP MagnaValves can use different sizes or types of media without recalibration. When using the 500-24 series valves (with internal flow rate sensor) the valve may need to be recalibrated. Your valve will be calibrated with the shot type and size specified on the Purchase Order. In most cases, the MagnaValve must be recalibrated if a different media type or size is used. We recommend that the valve be returned to EI for recalibration but there are some instances when it can be done in-house. Our engineering staff is available to answer any questions on recalibrating the valve.

Q. My mechanical valve doesn’t maintain a constant flow rate. Why?
A. Mechanical valves suffer erosion due to the abrasive rubbing against the surface and therefore self-destruct. Their many external and internal moving parts that are exposed to shot and allow metal dust to enter the valve. Also, to close the valve, a mechanical valve must apply frictional force against the media, which causes wear. The worn areas allow more media to flow with little or no control over the flow rate. In contrast, due to the MagnaValve’s electro-magnet design, the shot pools on the interior parts of the valve and provides a layer of protection against flowing shot.

Q. Is the MagnaValve® CE compliant?
A. Yes, our 24 Vdc MagnaValves are CE compliant.

Q. How does the MagnaValve® reduce media and energy usage?
A. A MagnaValve’s controller is so easy to adjust that machine operators can adjust the MagnaValve’s flow rates to accommodate the requirements of different components. Because mechanical valves are difficult to adjust, they are often set once and forgotten so all components, regardless of size and composition, receive the same cleaning treatment. This lack of control results in media waste and wasted energy usage due to excess load on motors.

Q. I work in a foundry. Do you have a MagnaValve® that tolerates high-temperature environments?
A. The WM 3000-24 MagnaValve is ideal for foundries. The Remote Valve Driver for the MagnaValve comes with a 6-ft cable for installation in the customer’s electrical panel, making it an ideal valve for blast machines in high-temperature environments. It’s a powerful valve with a flow rate capacity of up to 3,000 lb/min (1,361 kg/min) for wheels up to 125 hp.
